Reflective Glass
Reflecting Excellence, Enhancing Efficiency
Reflective glass is engineered for solar heat regulation, glare reduction, and energy efficiency while enhancing architectural aesthetics. Manufactured using Chemical Vapour Deposition (CVD) technology, it features a durable metal oxide coating that remains intact after cutting, bending, tempering, or laminating. By reflecting infrared and UV radiation, it minimises cooling loads, making it ideal for high-rise buildings, curtain walls, and skylights.
- High Light Penetration – Allows for optimal natural light entry while reducing glare.
- Eco-Friendly – Manufactured using sustainable processes, reducing environmental impact.
- Solar Energy Control – Reflects infrared and UV radiation, reducing solar heat gain and cooling costs.
Performance Metrics for Reflective Glass
| Performance Metric | Description | Typical Value |
|---|---|---|
| U-value (Thermal Insulation Efficiency) | Measures the rate of heat transfer through the glass; lower values indicate better insulation. | 1.0-1.5 W/m²K |
| Solar Heat Gain Coefficient (SHGC) | Represents the fraction of solar radiation admitted through the glass; lower values reduce heat gain. | 0.20 -0.35 |
| Visible Light Transmittance (VLT) | Indicates the percentage of natural light passing through the glass, affecting indoor brightness. | 10% - 40% (varies by coating type) |
| Emissivity (E-value) | Defines the glass surfaces ability to emit radiant heat; lower emissivity enhances energy efficiency. | 0.05-0.10 (varies depending on the coating) |
- Thickness: 5mm – 6mm
- Standard Size: 2134mm x 3302mm
- Coating Options: Available in a range of reflective finishes, such as silver, bronze, and grey, with durable metal oxide coatings applied via Chemical Vapour Deposition (CVD) technology.

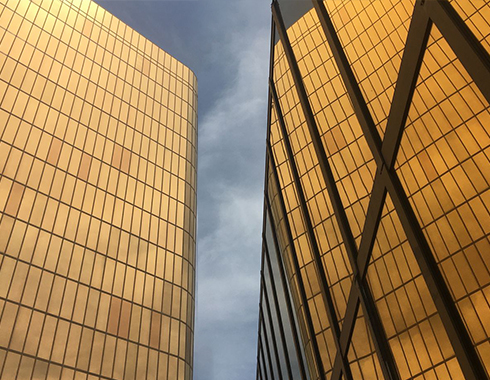

- High-rise and commercial buildings
- Facade systems and curtain walls
- Solar heat control in skylights and glass screens
- Windows and doors with glare reduction and improved privacy
- Architectural and aesthetic applications requiring visual clarity and solar control
